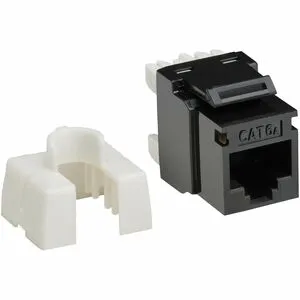

The Eaton Tripp Lite Series Cat6a Keystone Jacks are an essential component for anyone looking to enhance their networking capabilities with high-speed Ethernet connections. Perfect for both professional installers and DIY enthusiasts, these keystone jacks simplify the termination of Cat6a cables, ensuring a streamlined and reliable performance. With a robust design and compliance with TAA standards, these jacks are ideal for a wide range of networking applications.

• Effortless Installation: These Cat6a keystone jacks are designed for easy termination of Cat6a cables. Just plug a cable into the RJ45 Ethernet port and use a 110 or Krone punch-down tool for a secure connection.
• Power over Ethernet Plus (PoE ) Support: These keystone jacks are engineered to supply power to compatible devices such as security cameras and VoIP phones, removing the need for separate power supplies and facilitating installations in hard-to-reach locations.
• Compliance with EIA/TIA Standards: Each keystone jack is UL-certified and fully compliant with all EIA/TIA Cat6a specifications, guaranteeing top-notch performance and reliability for your high-speed network.
• Dual Color-Coded Labeling: The jacks feature dual color-coded labeling for both 568A and 568B wiring schemes, allowing for quick and efficient identification during installation.
• TAA Compliance: The Eaton Tripp Lite N238-025-BK-6A keystone jacks are compliant with the Federal Trade Agreements Act (TAA), making them eligible for GSA Schedule purchases and federal procurement contracts.

Technical Details of Product

• Product Type: Keystone Jacks
• Pack Size: 25 Pack
• Color: Black
• Standards: UL-certified, EIA/TIA Cat6a compliant
• Performance: Up to 650 MHz
• Wiring Schemes: 568A/B (dual color-coded)
• Power over Ethernet: Supports Type 4 PoE (4PPoE)
• TAA Compliance: Yes

How to Install

Installing the Eaton Tripp Lite Series Cat6a Keystone Jacks is straightforward and can be accomplished with the following steps:

1. Prepare your Cat6a cable by stripping the outer jacket and exposing the inner wires.
2. Align the wires according to the color-coded wiring scheme (568A or 568B) indicated on the keystone jack.
3. Insert the wires into the appropriate slots in the keystone jack.
4. Use a 110 or Krone punch-down tool to terminate the connections securely.
5. Snap the keystone jack into a standard patch panel, wall plate, or outlet box.
6. Test the connection to ensure proper performance.

Frequently Asked Questions

• Are these keystone jacks compatible with all Cat6a cables? Yes, the Eaton Tripp Lite Series Cat6a Keystone Jacks are designed to work with all Cat6a cables and meet all EIA/TIA Cat6a requirements.
• What is the maximum performance frequency of these jacks? These keystone jacks offer up to 650 MHz performance, ensuring high-speed data transmission.
• Can I use these jacks for powering devices with PoE? Absolutely! The Cat6a keystone jacks support Type 4 Power over Ethernet Plus (PoE ), allowing you to power compatible PoE devices directly through the ethernet connection.
• Are these keystone jacks compliant with federal purchasing regulations? Yes, these jacks are TAA-compliant, making them eligible for GSA Schedule purchases and suitable for federal procurement contracts.
• How many keystone jacks come in a pack? The Eaton Tripp Lite Series Cat6a Keystone Jacks come in a convenient 25 pack, allowing for multiple installations.
